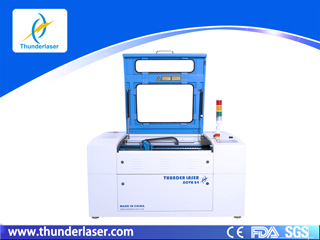

Nova24

With a reasonable size, the Nova24 laser is really good for users who have very little space to put the machine.

Information
Laser Tube Wattage	40-60Watt
Work Area	600x400mm(23.6” x 15.7” )
Z Axis Height	155mm(6.1″)
Dimensions(WxDxH)	1070x790x540mm(42.1” x 31.1” x21.3”)
Motion Control System	High-Speed Servo Motors
Maximum Speed	1000mm/S
Resolution(DPI)	User controlled from 100 to 500DPI(standard laser head), up to 1000 DPI(HR head)
Compatible Operating Systems)	Windows XP/2000/Vista/7/8/10

Standard Features

Optional Items
	Since the laser tube in the laser cutter will produce a large amount of heat when it’s working, you will need an external cooling system.
	Rotary engraving equipment was used to extending THUNDERLASER system application, as a optional component, It can be used for cutting and engraving round items.
	A thermal detector is designed for areas where a fire will be more flame and heat than smoke; areas such as laser cutter and engraver, kitchens, garages and workshops.
	HR head made by special structure for focusing the laser bean into a much smaller dot,thus we can get more tiny laser dots in a unit area,and the engraving result will be more elaborate.
	4” laser head owns a longer focal distance than 2” standard head, thus for cutting thick material, it makes the cutting edge more smooth and straight.

Materials
Materials	Engrave	Cut
Wood	√	√
Acrylic	√	√
Delrin	√	√
Cloth	√	√
Leather	√	√
Mat Board	√	√
Melamine	√	√
Paper	√	√
Mylar	√	√
Pressboard	√	√
Rubber	√	√
Wood Veneer	√	√
Fiberglass	√	√
Plastic	√	√
Twill	√	√
Cork	√	√
Corian	√	√
Anodized Aluminum	√
Painted Metals	√
Tile	√
Glass	√
Coated Metals	√
Ceramics	√
Marble	√
Stainless Steel	*
Brass	*
Titanium	*
Bare Metal	*
* means the laser cannot engrave directly, you will need the help of the “thermark spray”, you can visit www.thermark.com for more information.

Machine Size
